10/2008
Spark Detector Board / Perforation Detector unit.
CSI can now supply your Perforation detection equipment needs. These “Spark Detector” or “Perforation Detector” units have been used for years to count individual bags on moving webs.
They have been designed to replace original equipment boards, such as the SZG-994, SZG_995, and SZG-05.
The units have the following specification:
| Main Power:
| 120/240V Ac 1Phase 60Hz
|
| Output Signal 1:
| Opto-coupler output, Max 30V 100ma
|
| Output Signal 2:
| 8Vdc, Internally adjustable pulse width.
|
| H.V. Generator:
| Transistorised flyback converter approx. 4khz
|
| Options:
| Stand-alone control mounted in a industrial enclosure.
|

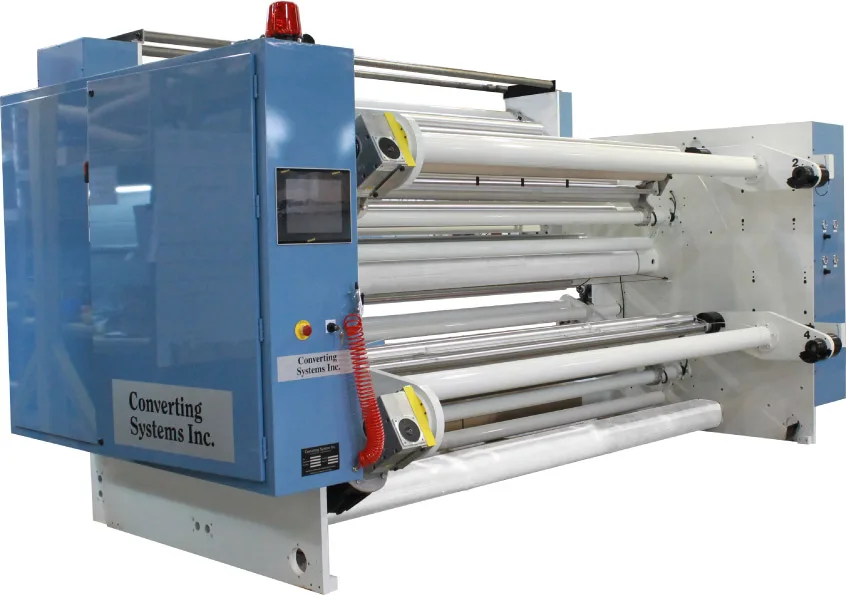

These boards are in use on many Coreless Winder units. Please call with any specific application questions.
