Foster Roll Lifter

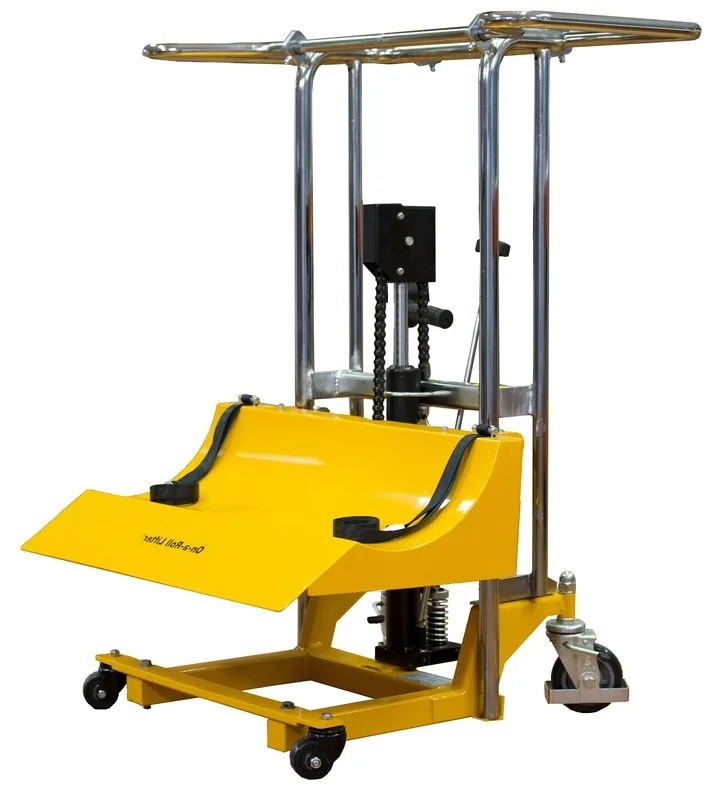

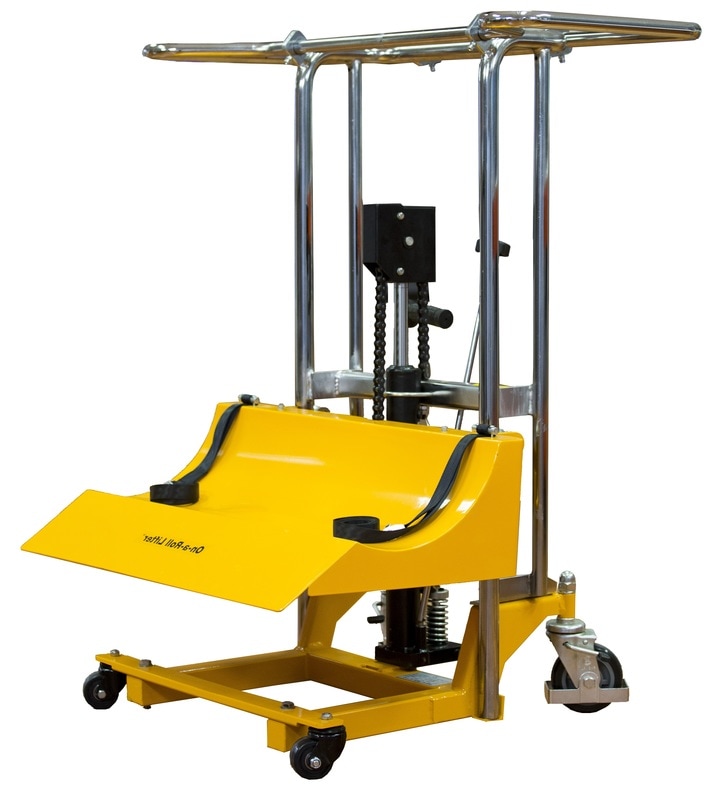

Standard - Model 61584

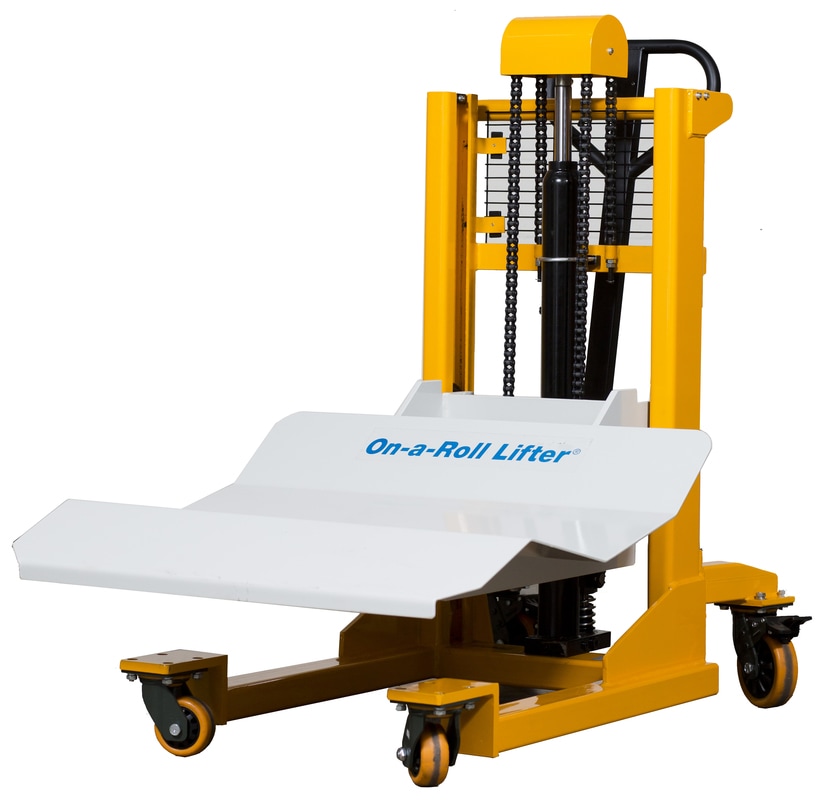

Grande - Model 61590

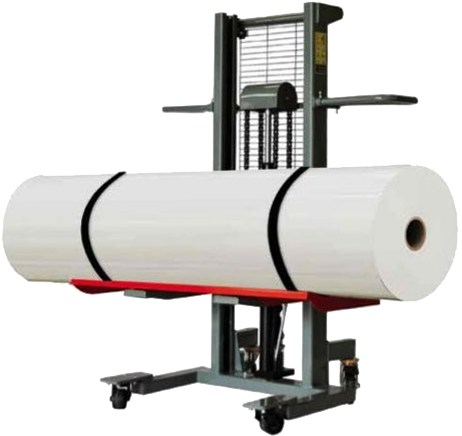

Jumbo - Model 61577
CSI is excited to introduce Foster Roll Lifters to our product line. These roll carts are a great accessory for your winding equipment.
Standard Model (#61584): ideal for CSI 1900 Winder
Grande Model (#61590): ideal for CSI 3001 Winder
Features:
Please contact us if you're interested in purchasing a roll lifter or visit us at CSI-Parts . For more models, please see our brochure by clicking HERE
Standard Model (#61584): ideal for CSI 1900 Winder
Grande Model (#61590): ideal for CSI 3001 Winder
Features:
- Heavy-duty swivel casters with easy step-on locking brake
- Specially designed tray for easy loading and unloading rolls
- Reduces on-the-job injuries and enables all workers to move heavy rolls
- User-friendly operation avoids costly and dangerous handling mistakes that damage media
- Rugged construction ensures long lifter life
- Single-person operation saves labor and time
- Foot pump allows for smooth, effortless lifting within minutes.
- 2-year warranty on all wheels, hydraulics and media tray.
- 5-year warranty on cross bars.
Please contact us if you're interested in purchasing a roll lifter or visit us at CSI-Parts . For more models, please see our brochure by clicking HERE
|
Specifications |
Standard - Model 61584 |
Grande - Model 61590 |
Jumbo - Model 61577 |
|
Roll Weight Capacity |
660 lbs (300 kg) |
1540 lbs (700 kg) |
990 lbs (450 kg) |
|
Max Lift Height |
33.5 in (85 cm) |
34 in (86.5 cm) |
58.95 in (150 cm) |
|
Max Roll Width |
8ft 2in (250 cm) |
61 in (155 cm) |
16ft 5in (500 cm) |
|
Max Roll Diameter |
15.75 in (40 cm) |
31.5 in (80 cm) |
19.6 in (50 cm) |
|
Width x Depth |
31.5 in x 31.5 in (80cm x 80cm) |
26.82 in x 49.74 in (68.12 cm x 126.33 cm) |
47.24 in x 30.51 in (120 cm x 77.5 cm) |
|
Height |
47 in (119.4 cm) |
44.1 in (112.01 cm) |
61.22 in (155.5 cm) |
|
Weight |
177 lbs (80 kg) |
337 lbs (153 kg) |
295 lbs (134 kg) |
|
Bottom Fork Clearance |
4 in (10 cm) |
6.3 in (15.9 cm) |
4.33 in (11 cm) |
|
Recommended For |
CSI 1900 Winder |
CSI 3001 Winder |
- |
