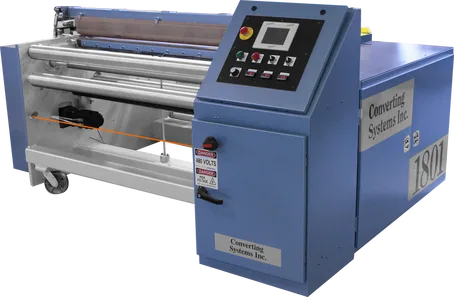

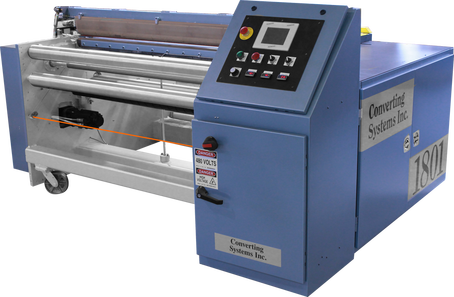

CSI Model 1801 - Servo Shuttle Style Plastic Bag Machine


Our standard line bag machine features Servo controlled head, shuttle and front chrome roll.

Operators control all the machine functions and set-up through a color touchscreen, eliminating the need for operators or set up personnel to go inside any enclosure.

Whether rebuilt or new, the 1801 carries a 1 year warranty on CSI parts and manufacturer's warranty on all purchased parts.

Operating Specifications


Length control:+/- 1/32nd Guaranteed up to 130 CPM(material dependent)
Max. cycle rate: 130CPM+(Bag length dependent)
Machine speed: 250FPM (Consult factory for high speed applications)
Length limits:4" to 9900"
Material thickness limits: .0003" to .024"
Power: 240,480Vac 3Ph
Number of lines: Dependent on machine width

1801 Servo Shuttle Style
Servo Shuttle Style
Model 1801
1801E Economy Servo Shuttle Style
Servo Shuttle Style
Model 1801E
1820 Dual Head Servo Shuttle Style
Dual Head Servo Shuttle Style
Model 1820
1830 High Speed Servo Shuttle/Bottom Seal Style
High Speed Servo Shuttle/Bottom Seal Style
Model 1830
1850 High Speed Servo Shuttle/Garment Style
High Speed Servo Shuttle/Garment Style
Model 1850
1801V Vertical Head Bag Machine
Vertical Head
Model 1801V
Bag Machine Rebuilding
Bag Machine Rebuilding
Search & Order Replacement Parts
Search & Order Replacement Parts
