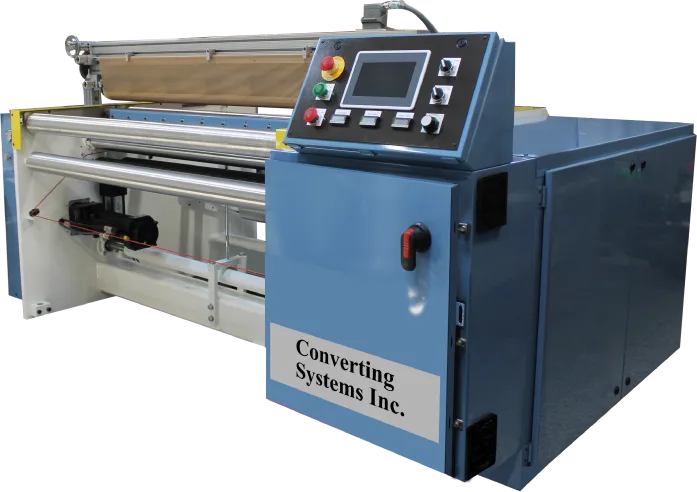

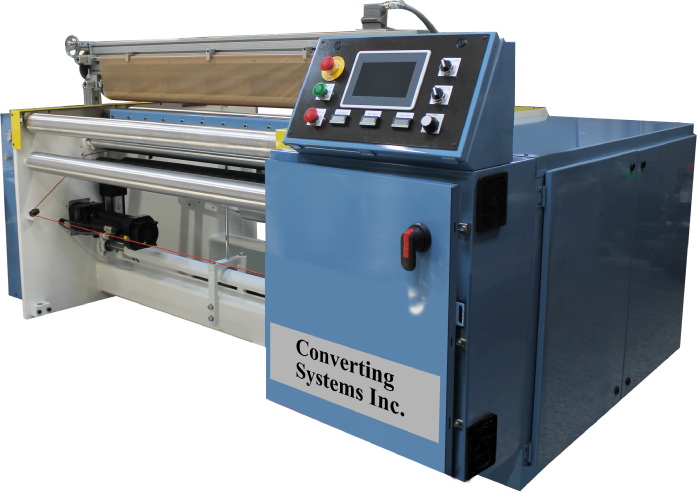

Model 1801V - Vertical Head Servo Shuttle Style Bag Machine


Introducing our NEW Vertical Head Servo Shuttle Style Bag Machine, the sixth and fastest addition to our bag machine series.

Featuring faster line speeds, enhanced safety features, easier maintenance, and HMI touchscreen access for set-up, operation, and troubleshooting resources. Developed with the operator and maintenance mechanic in mind, the 1801V incorporates new, single-operator features to reduce maintenance time and increase productivity, including:
  • Tool-free Teflon curtain and platen insert adjustments
  • Pivoting head via hand crank for convenient blade replacement and service
  • Improved, smoother shuttle technology for more consistent film glide
  • Lightweight, short stroking head allowing faster cycle times (up to 225 CPM)
  • Part compatibility with some older CSI and competitors’ machines
Part compatibility with some older CSI and competitors’ machines.  Includes a 1 year warranty on CSI parts and manufacturer's warranty on all purchased parts.

Operating Specifications


Length control:+/- 1/32nd Guaranteed up to 225 CPM(material dependent)
Max. cycle rate: 225CPM+(Bag length dependent)
Machine speed: 250FPM (Consult factory for high speed applications)
Length limits:4" to 9900"
Material thickness limits: .0003" to .024"
Power: 240,480Vac 3Ph
Number of lines: Dependent on machine width
